Surface Mount Temperature Sensors

Surface mount temperature sensors consist of a temperature sensor element that is constructed into an assembly purposed for measuring the surface temperature of an object.

Features:

  • Temperature sensor elements are not subject to the direct process conditions
  • Temperature sensor placement is not limited to a threaded or flanged entry point
  • Sensor location can be changed if using a non-welded style

Application: In some applications the surface temperature measurement value is used as a correlation to the process temperature. In other cases, the surface temperature is the measured variable sought out.

Boiler Tube Block Sensor Model BTB

Features:

  • Robust design that is very simple to install
  • Unmatched reliability
  • Third party proven - the most accurate tube metal temperature sensor when compared to traditional surface mount sensors

Application: BTBs are commonly used inside OTSGs, HRSGs, Coker Furnaces, Industrial Boilers and Furnaces.

Aircom manufactures various styles of surface mount temperature sensor assemblies for both general and hazardous locations.

Heat Trace RTD Sensor HT3 (PDF)
Weld Pad Thermocouple Model WPT (PDF)
Pipe Saddle Riser Assembly SM1 (PDF)

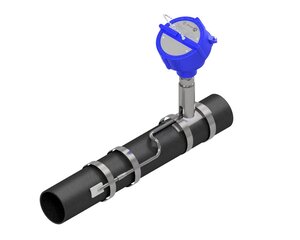

Pipe Shoe Riser Assembly SM2 (PDF)
Heat Trace RTD Sensor HT2 (PDF)
Magnet Temperature Sensor 50lb MG1 (PDF)
Magnet Temperature Sensor 75lb MG2 (PDF)
Magnet Temperature Sensor 150lb MG3 (PDF)
Surface Pad Temperature Sensor SM3 (PDF)
Surface Pad Temperature Sensor SM4 (PDF)
Boiler Tube Block
